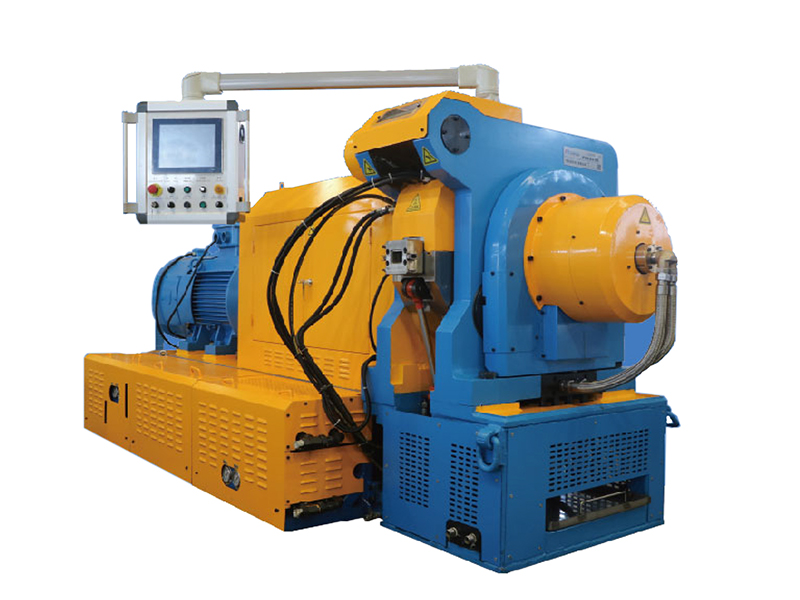

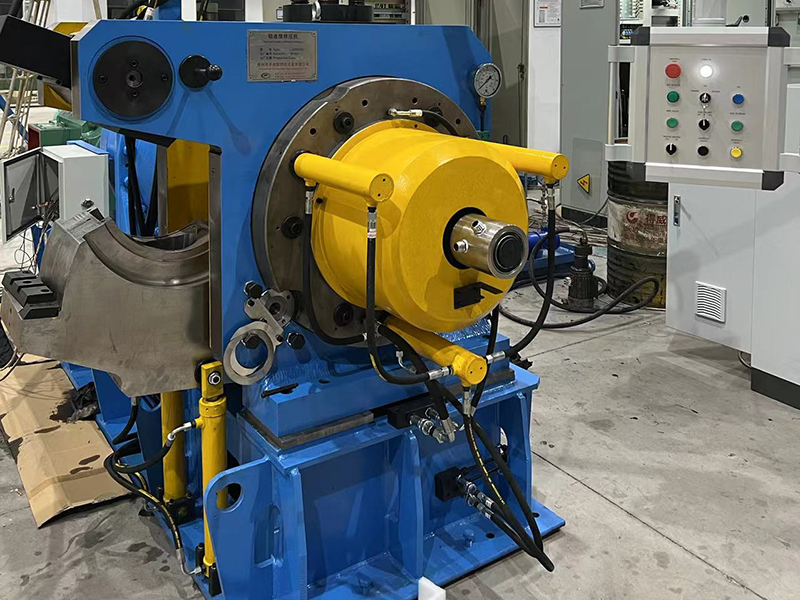

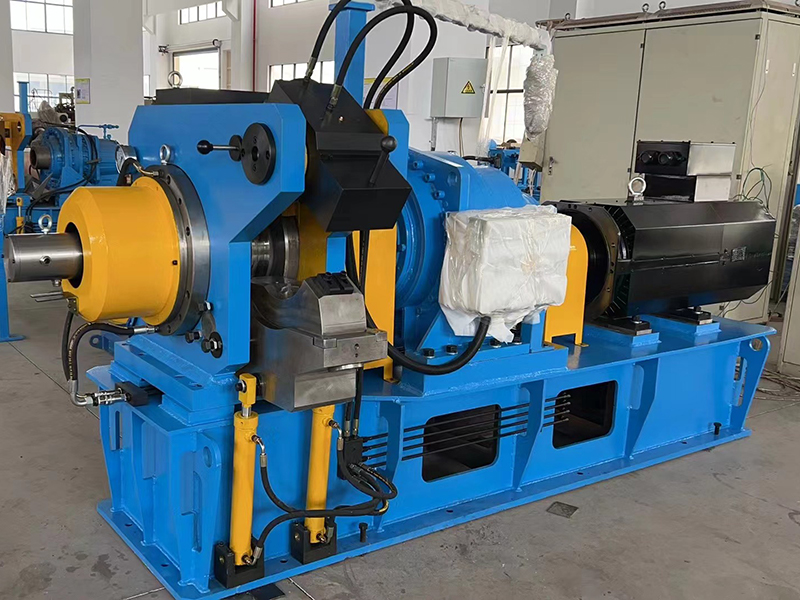

Continuous Rotary Extrusion Machine

Metal extrusion machine for processing copper and aluminum rods

Continuous Rotary Extrusion Machine
  • Continuous Rotary Extrusion Machine
  • Continuous Rotary Extrusion Machine
  • Continuous Rotary Extrusion Machine
  • The continuous rotary extrusion machine is designed for processing copper and aluminum rods into a variety of products, including solid, hollow, shaped, and multi-porous flat sections. This machine excels in producing items with good elongation properties, uniform dimensions, and low resistivity. It can create profiles that traditional drawing machines cannot achieve, such as fan-shaped, H-shaped, S-shaped, and L-shaped products.

    Request a Quote
    Specifications
    Model Inlet wire rod diameter (mm) Extrusion wheel diameter (mm) Cross section area of product (mm2) Output (kg/h) Flash amount Installed power (kVA)
    HTLJ-285
    Al:9.5
    Cu:8
    ⌀285 6-400 150 ≤5% 160
    HTLJ-315
    Al:2*9.5\1* 15
    Cu:2*8\12
    ⌀315 10-500 180 ≤5% 200
    HTLJ-350
    Al:2*9.5\1* 15
    Cu:2*8\12
    ⌀350 25-800 360 ≤5% 250
    HTLJ-400
    Al:15\20
    Cu:12
    ⌀400 50-1000 500 ≤5% 320

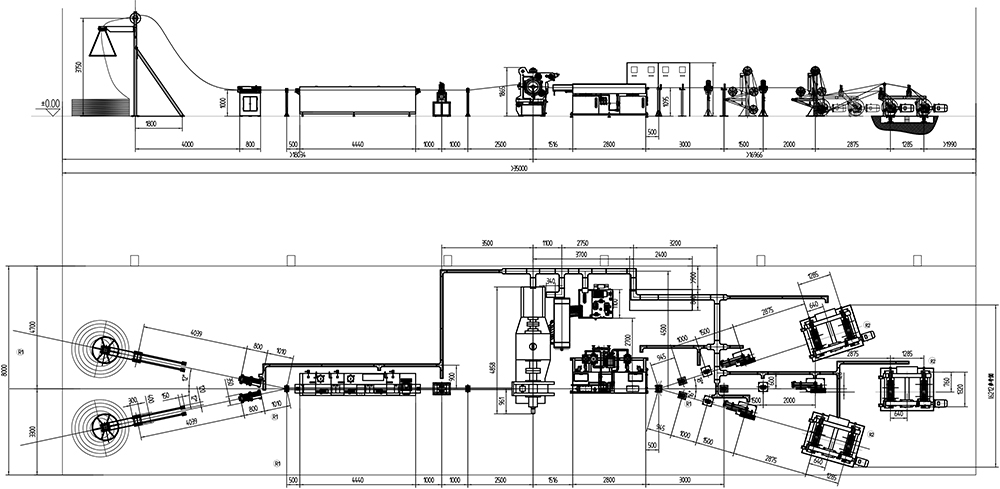

    Layout
    Continuous Rotary Extrusion Machine
