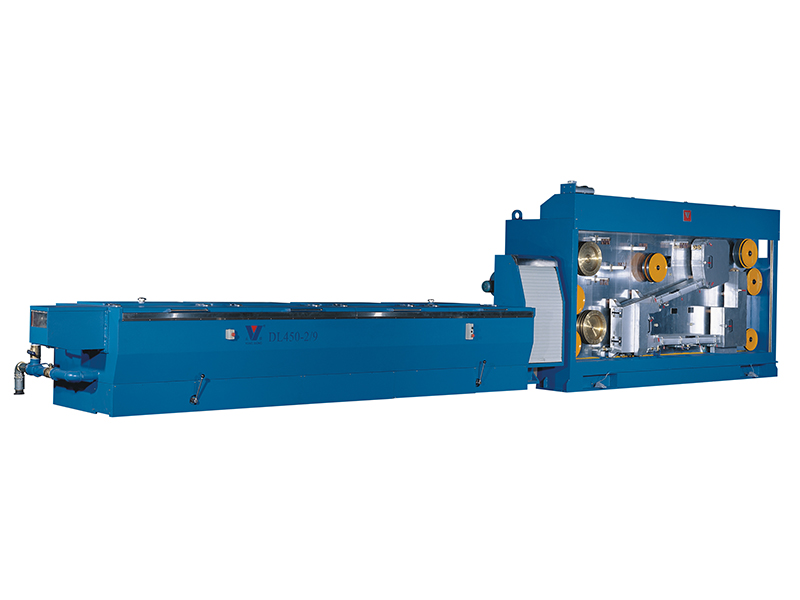

Copper Rod Breakdown Machine with Individual Motor

Wire drawing machine for copper wires

The copper rod breakdown machine with individual motor is designed for drawing copper wires from ⌀8mm low-oxygen or oxygen-free copper rods to ⌀1.2-4.5mm. This machine also performs annealing during the drawing process, producing high-quality copper wires for electrical purposes.

Request a Quote

Combines wire drawing and annealing processes, ensuring high production efficiency and stable wire properties.
Available with gear drive or individual motor drive systems. Choose between single-head or double-head configurations based on your production needs and space constraints.
Both gear drive and individual motor drive systems offer high production efficiency, stable product quality, and low operational noise.
Each drawing drum is independently driven by its own motor, allowing precise control of compression ratios for better mold matching and adaptability to different copper grades.

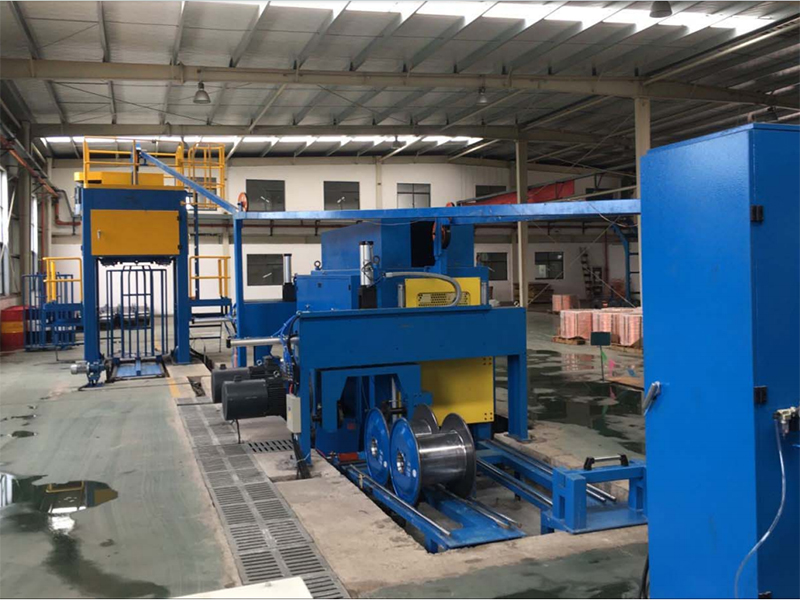

Optional take-up systems include single spool, automatic spool change, and vertical pay-off configurations, allowing flexibility in production.
Utilizes an MMI+PLC control system for synchronized control of the entire production line. Real-time monitoring and easy adjustment of process parameters via the touch screen ensure efficient and user-friendly operation.
Offers a range of auxiliary equipment, including threading machines, cold welding machines (or resistance butt welding machines), heat exchangers, and oil filtration systems, providing a complete turnkey solution for seamless operation.
