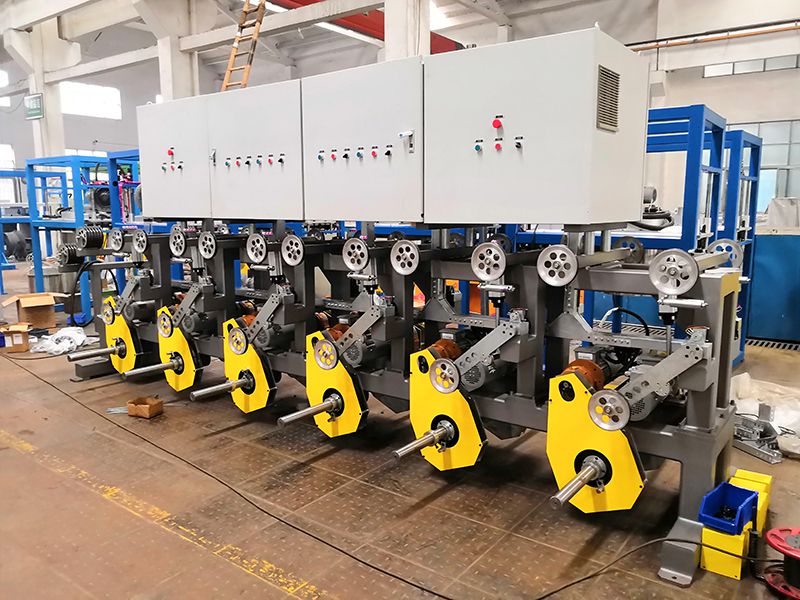

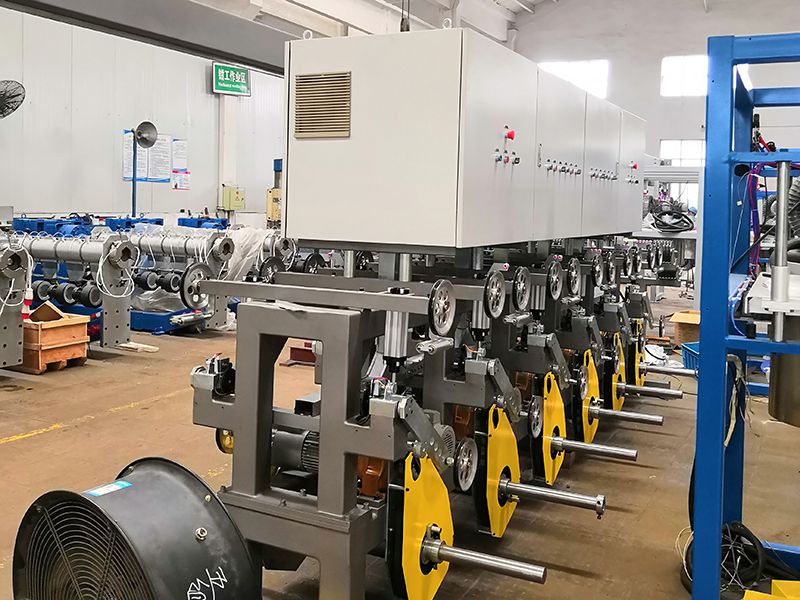

Multi Head Pay-Off (Ø500/600 mm)
Our multi head pay-offs provide constant tension and twist-free wire pay-off, accommodating single wire pay-off or multiple wire pay-off. Each wire reel operates independently, ensuring efficient and space-saving wire pay-off.
Discover the versatility of our multi head pay-off machine, suitable for various applications such as cable and elevator steel tape pay-off.
Features
- Space-Saving Design: Multiple wire pay-off units are consolidated, optimizing space utilization.
- Independent Control: Each wire reel can be controlled individually or synchronized with other reels.
- Simultaneous Pay-Off: Our multi head pay-off machine allows simultaneous pay-off of multiple wire reels.
Specifications
| Specification | PND500/630 |
| Bobbin Size (mm) | 500/630 |
| Max. Dia. of Flange (mm) | 500 |
| Min. Dia. of Flange (mm) | 630 |
| Center Hole (mm) | Ø75 |
| Range of Wire Diameter (mm) | Ø1.0-5.0 |
| Rotate Speed (rpm) | 7/17/37 |
| Motor Power (kW) | 5.5 |
| Max. Reel Weight (kg) | 600 |
