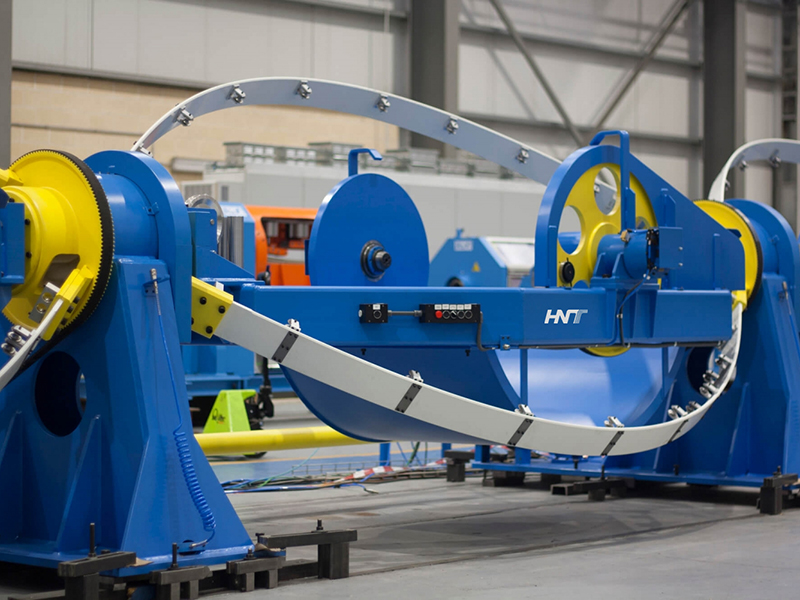

Bowing Type Laying-up Machine
Skip stranding machine for stranding and laying of cores of insulated cables
The bowing type laying-up machine is mainly used for stranding and laying of cores in insulated cables, including control cables, power cables, and mining cables with rubber insulation. The machine can be equipped with optional filling and wrapping devices.
Features
- Equipped with PLC and touch screen controls, allowing for real-time monitoring and adjustment of process parameters.
- Driven by independent motors, ensuring fast stranding speed and high production efficiency.
- Features a fully enclosed protective cover with observation windows, providing easy monitoring and low noise levels.
Specifications
| Bobbin diameter (mm) | Max. rotation speed (rpm) | Single wire diameter (mm) | ||||
| 3B | 4B | 5B | 6B | CAT5/CAT6 insulated cable | CAT1/CAT2 insulated cable | |
⌀630 | 880 | 850 | 830 | 800 | ⌀5～⌀10 | ⌀1.5～⌀5.0 |
⌀800 | 680 | 650 | 620 | 600 | ⌀5～⌀10 | ⌀2.0～⌀6.0 |
⌀1000 | 430 | 400 | 370 | 350 | ⌀8～⌀15 | ⌀3.0～⌀10 |
⌀1250 | 330 | 300 | 270 | 250 | ⌀8～⌀15 | ⌀3.0～⌀10 |
⌀1600 | 250 | 220 | 200 | 180 | ⌀10～⌀23 | ⌀5.0～⌀16 |
